Massive AI powered robots are 3D printing entire rockets in the US

futurist_relativity_space

WHY THIS MATTERS IN BRIEF

3D printing has come a long way in the past decade, and it won’t be long before it starts going mainstream.



Amazed by the Exponential Future? Join our XPotential Community, future proof yourself with courses from our XPotential Academyconnect, watch a keynote, or browse my blog.

Artificial Intelligence (AI) is now designing its own rocket engines, and elsewhere in the rocket industry a factory where autonomous robots toil now around the clock to build a rocket with almost no human assistance exists in stark contrast to the sound of grunts echoing across the parking lot from it.



RELATED
A family in France become the first family to live in a 3D printed house



“That’s Keanu Reeves’ stunt gym,” says Tim Ellis, the chief executive and cofounder of Relativity Space, a startup that wants to combine 3D printing and AI to do for the rocket what Henry Ford did for the automobile. Walking among the robots occupying Relativity’s factory, he points out the just-completed upper stage of the company’s rocket, which will soon be shipped to Mississippi for its first tests. Across the way, he says, gesturing to the outside world, is a recording studio run by Snoop Dogg.



Check out the promo reel



Neither of those A-listers have paid a visit to Relativity’s rocket factory, but the presence of these unlikely neighbours seems to underscore the company’s main talking point: It can make rockets anywhere. In an ideal cosmos, though, its neighbours will be even more alien than Snoop Dogg. Following in the footsteps of NASA who want to 3D and 4D print rockets in space, Relativity wants to not just build rockets, but to build them on Mars. How exactly? The answer, says Ellis, is robots, and lots of them.



RELATED
AI can now create new and powerful designer proteins in just minutes



Roll up the loading bay doors at Relativity’s Los Angeles headquarters and you’ll find four of the largest metal 3D printers in the world, churning out rocket parts day and night. The latest model of the company’s proprietary printer, dubbed Stargate, stands 30 feet tall and has two massive robotic arms that protrude like tentacles from the machine. The Stargate printers will manufacture about 95 percent, by mass, of Relativity’s first rocket, named Terran-1. The only parts that won’t be printed are the electronics, cables, and a handful of moving parts and rubber gaskets.



Courtesy: Relativity Space



To make a rocket 3D printable Ellis’s team had to totally rethink the way rockets are designed. As a result Terran-1 will have 100 times fewer parts than a comparable rocket – a massive simplification that in itself will help accelerate the development of 3D printed rockets.



RELATED
New holographic printing technique is thousands times faster than regular 3D printing



They company’s Aeon engine, for instance, consists of just 100 parts, whereas a typical liquid-fueled rocket would have thousands, and if you’re wondering just how far they could go then the AI designed rocket engine I eluded earlier in this article is just a single component… By consolidating parts and optimizing them for 3D printing, Ellis says Relativity will be able to go from raw materials to the launch pad in just 60 days – in theory, anyway. Relativity hasn’t yet assembled a full Terran-1 and doesn’t expect the rocket to fly until 2021 at the earliest though.

“A full-scale test will be the biggest milestone for them to prove this new technology,” says Shagun Sachdeva, a senior analyst at Northern Sky Research, a space consultancy. Then the company can start to address the other questions about its approach, such as whether there’s a need for a new rocket to pop into existence every 60 days – especially if Elon Musk and SpaceX can refurbish their fully reusable rockets within their goal of 24 hours.



RELATED
Britain's Royal Mint unveils the most secure coin in the world



Relativity thinks it will find its niche. Fully assembled, Terran-1 will stand about 100 feet tall, and be capable of delivering satellites weighing up to 2,800 pounds to low Earth orbit. That puts it above small satellite launchers like Rocket Lab’s Electron but well under the payload capacity of massive rockets like SpaceX’s Spaceship which just completed its latest hop tests. Ellis says it will be particularly well-suited to carrying medium-sized satellites.

Relativity isn’t the only rocket company using 3D printing – SpaceX, Blue Origin, Rocket Lab, and others also use it to print select parts. But Ellis thinks the space industry needs to think bigger. In the long term, Ellis sees 3D printed rockets as the key to transporting critical infrastructure to and from the surface of Mars. These rockets could, for example, be used to loft science experiments into orbit around Mars or return samples to Earth.



RELATED
This E-Ink reader now comes in full colour



Ellis, 29, and his cofounder, 26 year old Jordan Noone, have been building rockets since college, where they worked on the University of Southern California’s prestigious rocketry team before taking jobs at Blue Origin and SpaceX. At Blue Origin, Ellis helped set up the company’s additive manufacturing program. While there, he began to envision a robotic rocket factory that barely needs a human’s hand.

First, though, he needed to get some giant 3D printers. At the heart of Relativity’s robotic rocket factory is Stargate, which Ellis claims is the largest metal 3D printer in the world. The first version of Stargate is about 15 feet tall and consists of three robotic arms. The arms are used to weld metal, monitor the printer’s progress, and correct for defects.



RELATED
Nvidia to create AI Agents that outperform human nurses



To print a large component, such as a fuel tank or rocket body, the printer feeds miles of a thin, custom-made aluminum alloy wire along the length of an arm to its tip, where a plasma arc melts the metal. The arm then deposits the molten metal in thin layers, orchestrating its movements according to patterns programmed in the machine’s software. Meanwhile, the printer head at the tip of the arm blows out a non-oxidizing gas to create a sort of “clean room” at the deposition site.

Relativity now has a new version of Stargate that can, in a single go, print even bigger components, like the rocket’s fairing or fuel chambers. It stands twice as tall and has only two arms, which can each perform more tasks than their predecessors. Ellis said its next Stargate will double in size yet again, which will eventually allow the company to produce larger rockets.



RELATED
Under Armour's new trainers are inspired by nature, designed by an AI and 3D printed



The Stargate printers work well when you need to print large parts quickly, but for parts that require more precision, such as the rocket’s engine, Relativity uses the same commercially available metal 3D printers that other aerospace companies use. These printers use a different printing technique, in which a laser welds together layers of ultra-fine stainless steel dust.

Ellis says the real secret to Relativity’s rockets is the AI that tells the printer what to do. Before a print, Relativity runs a simulation of what the print should look like. As the arms deposit metal, a suite of sensors captures visual, environmental, and even audio data. Relativity’s software then compares the two to improve the printing process.



RELATED
Accenture automates 17,000 jobs without making anyone redundant



“The defect rate has gone down significantly because we’ve been able to train the printer,” Ellis says.

With every new part, the machine learning algorithm gets better, until it will eventually be able to correct 3D prints on its own – just as Lockheed Martin’s own “creative and intelligent” 3D printers and their own “AI brains” are now able to do without any prior training for the US Military. In the future, the 3D printer will recognise its own mistakes, cutting and adding metal until it produces a flawless part. Ellis sees this as the key to taking automated manufacturing to other worlds.

“To print stuff on Mars you need a system that can adapt to very uncertain conditions,” Ellis says. “So we’re building an algorithm framework that we think will actually be transferable to printing on other planets.”



RELATED
Rumours still swirl around OpenAI's human level AI "Q"



Not everyone is convinced that Relativity’s approach to rocket manufacturing is the way forward, at least for Earthly concerns. Max Haot, the CEO of Launcher Space, a startup that also uses 3D printing, says “everyone is leveraging 3D printing as fast as they can” in the aerospace industry, in particular for engine components. “The question is whether 3D printing aluminum tanks is worth it when compared to the traditional tank manufacturing methods,” Haot says. “We don’t think so, but let’s see where they take it.”

Relativity has already inked deals worth several hundred million dollars with several major satellite operators, including Telesat LEO and Momentus. But Arjun Sethi, a partner at Tribe Capital, which invested in Relativity, sees more than launch services in its future. He compared it to Amazon Web Services in the way it could provide critical infrastructure to smaller space companies. Meanwhile, Sachdeva, of Northern Sky Research, thinks Relativity’s expertise in aerospace 3D printing could have lasting value beyond its rockets.



RELATED
This new brain implant lets blind patients see without eyes



“Even if we don’t get to the point of full rocket manufacturing on Mars, Relativity may be able to manufacture other components in orbit,” Sachdeva says. “That’s a pretty big development for the industry as a whole.”

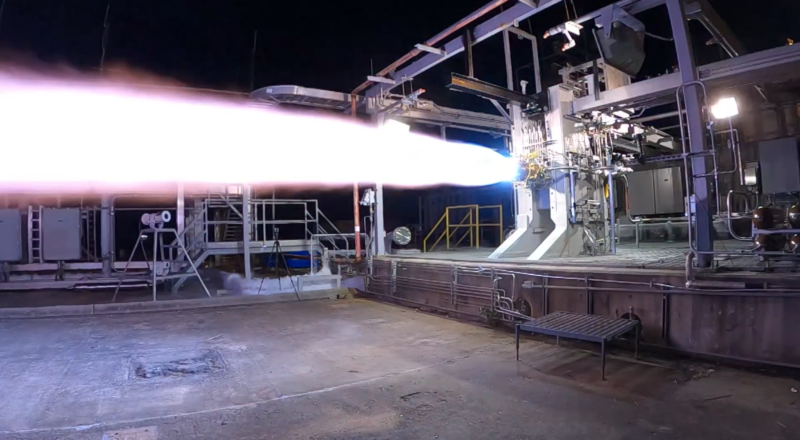

Still, rockets are its first goal. So far it’s been testing its 3D-printed engine, pressure tanks, and turbopumps. But there’s plenty more to do.

Once they have a complete rocket, Ellis and his team will be ready to ship it to Launch Complex-16 at Kennedy Space Center, in Florida, where Relativity holds a long-term launchpad lease, alongside SpaceX, Blue Origin, and the United Launch Alliance. The first flight of an entirely 3D printed rocket will be a major moment in space exploration, but for Relativity it will be just the start of its long journey to Mars.
